STANDARD
OPTIONS
| Application: |

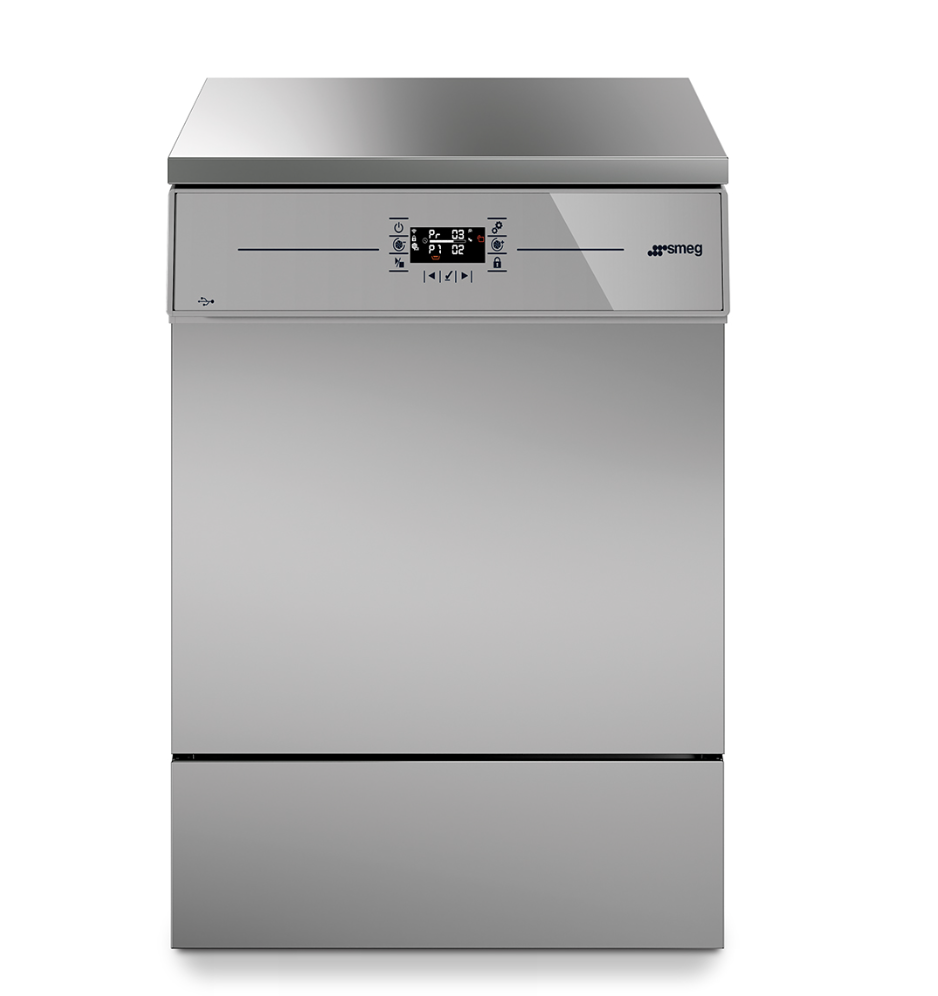

glassware washer for washing and thermal disinfection of glassware and various laboratory materials |
| Electronic control: |
microprocessor electronic control with 3 safety levels for parameter editing and adjustment |
| Display: |
touch colour LCD display with glass front panel, simultaneous display of operating parameters, USB front port |
| Programs: | 7 default + 1 for service |
| Clock and calendar: |
yes |
| Reprogrammable phases: |
yes, customizable programs via supplied connection software |
| Temperature: |
85°C |
| Accuracy: |
0.1°C |
| Temperature sensor in chamber: |
PT1000 temperature sensor |
| Water heating: |
electrical; maximum power 7 kW (3-phase), 2.8 kW (single-phase) |
| Steam condensor: |
no |
| Detergent dosing system: |
peristaltic dosing pump for liquid detergent |
|
Detergent level sensor: |
optional |
|
Liquid acid pump: |
yes |
|
Safety lock: |
electronic door lock system |
|
Safety devices: |
electronic door interlock, safety thermostats, user protection systems |
|
Alarm display: |
acoustic and visual alarm system with status indication |
|
Troubleshooting menu: |
not specified |
|
Program editing: |
yes, through supplied connection software |
|
Traceability: |
internal memory for cycles, parameters and alarm data logging |
|
Communication: |
USB connectivity and cycle monitoring software included |
|
Cycle storage: |
yes, internal memory for cycle and alarm storage |
|
Cold water inlet: |
yes |
|
Demineralised water inlet: |
yes |
|
Water softener incorporated: |
yes, with salt sensor |
| Supply voltage: | Standard: 3/N/PE 400 V – 50 Hz – 7 kW; Convertible: 1/N/PE 230 V – 50 Hz – 2.8 kW; Convertible: 230 V 3~ – 50 Hz – 19 A – 7 kW |
| Noise level: |
not specified |
| Wash chamber: | AISI 304 stainless steel |
|
Exterior covering: |
AISI 304 stainless steel |
|
Overall dimensions (W x D x H): |
600 x 605 x 850 mm |
| Chamber (W x D x H): | 527 × 520 × 555 mm |
| Weight: | 72kg |
| Set includes: | without trolleys |
